Terminal de horquilla sin aislar de calibre 12-10 para perno #10, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Max. Temp. | 347 deg F |
| Terminal Type | Locking |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.73 in |
| Seam | Butted |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.32 in |
| Connection Material | Copper |
| Maximum Lock Width | 0.36 in |
| Insulation Material | Non-insulated |
| Barrel Inside Diameter | 0.135 in |

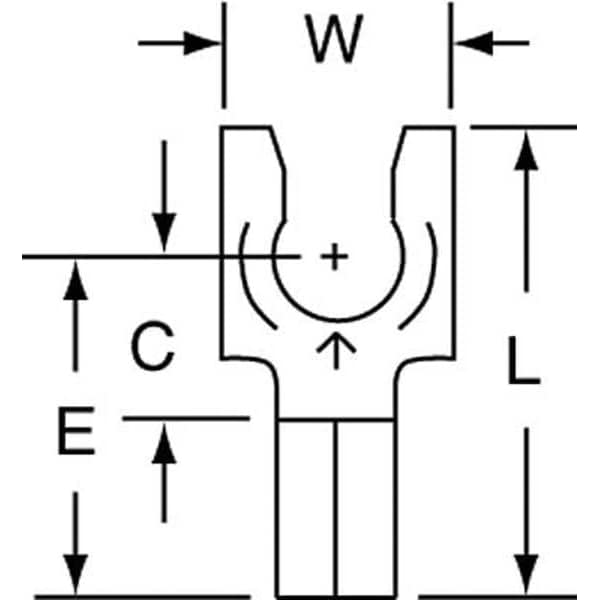

| Clearance (C) | 0.28 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Maximum Conductor Size | 10 AWG |
| Stud Diameter | 0.19 in |
| Dimension E | 0.53 in |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 12 AWG |
| Package Quantity | 500 |
