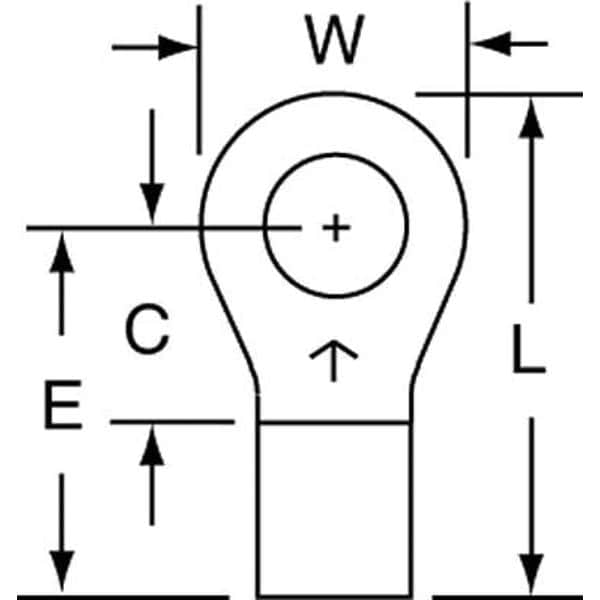

Terminal de anillo no aislado de calibre 12-10, con perno #10. Paquete de 500.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Type | Standard |
| Seam | Brazed |
| Overall Length | 0.73 in |
| Item | Ring Terminal |
| Tongue Width - Wire Connector | 0.38 in |
| Max. Voltage | 600 V |
| Max. Temp. | 347 deg F |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Standards | CSA Certified, UL Listed |
| Connection Material | Copper |
| Minimum Operating Temperature | 347 deg F |
| Contact Material | Copper |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Barrel Inside Diameter | 0.14 in |
| Barrel Length | 1/4 in |
| Termination Style | Crimp |
| Insulation Coverage | None |
| Minimum Wire Size | 12 AWG |
| Barrel Style | Brazed |
| Insulation Material | None |
| Contact Finish | Tin |
| Maximum Voltage | 1,000 V |
| Maximum Operating Temperature | 347 deg F |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| RoHS Compliant | Yes |
| Terminal Shape | Standard Ring Tongue |
| Tongue Length | 0.48 in |
| Seam Style | Brazed |
| Tongue Thickness | 0.04 in |
| Maximum Wire Size | 10 AWG |
| Hole Spacing | 0.29 in |
| Tongue Width | 0.38 in |
| Package Quantity | 500 |
