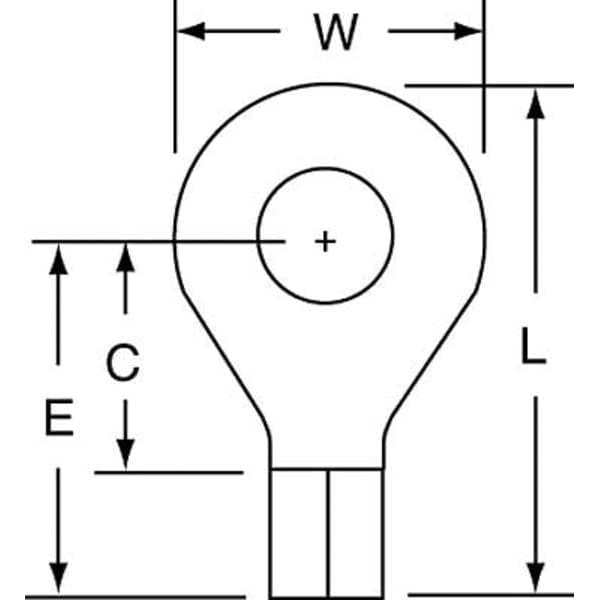

Terminal de anillo no aislado para cable de calibre 12-10 con espárrago de 1/4", paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 1/4 in |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Seam | Butted |
| Connection Material | Steel |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.99 in |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Max. Temp. | 900 deg F |
| Terminal Type | Standard |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.59 in |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature (Celsius) | 482°C |
| Connection Width | 1/4 in |
| Maximum Conductor Size | 10 AWG |
| Insulation Material | Non-insulated |
| Minimum Conductor Size | 12 AWG |
| Seam Style | Butted |
| Tongue Width | 0.59 in |
| Contact Material | Nickel Alloy |
| Termination Style | Crimp |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Package Quantity | 500 |
