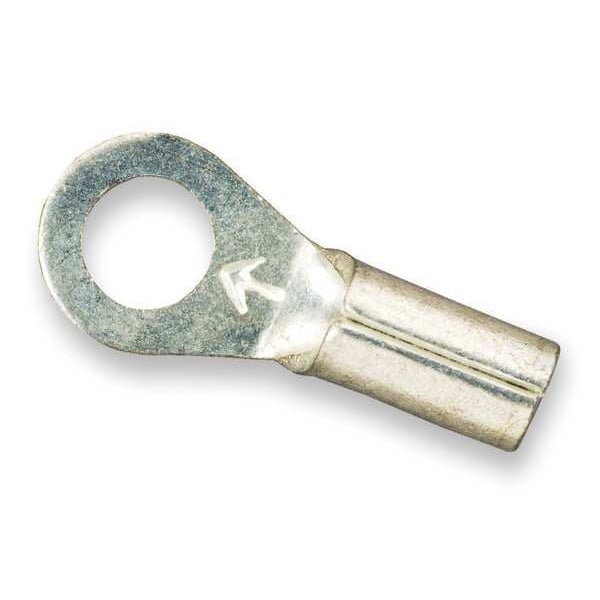

Terminal anular no aislado de 12-10 AWG para tornillo #8, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Seam | Butted |
| Tongue Width - Wire Connector | 0.38 in |
| Overall Length | 0.73 in |
| Connection Material | Copper |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Max. Temp. | 347 deg F |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Maximum Voltage | 600 V |
| Insulation Material | Non-insulated |
| Clearance (C) | 0.29 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Barrel Inside Diameter | 0.135 in |
| Dimension E | 0.54 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Minimum Stud Diameter | 0.164 in |
| Seam Style | Butted |
| Maximum Wire Size | 10 AWG |
| Tongue Width | 0.38 in |
| Contact Material | Copper |
| Termination Style | Crimp |
| Minimum Wire Size | 12 AWG |
| Package Quantity | 50 |
