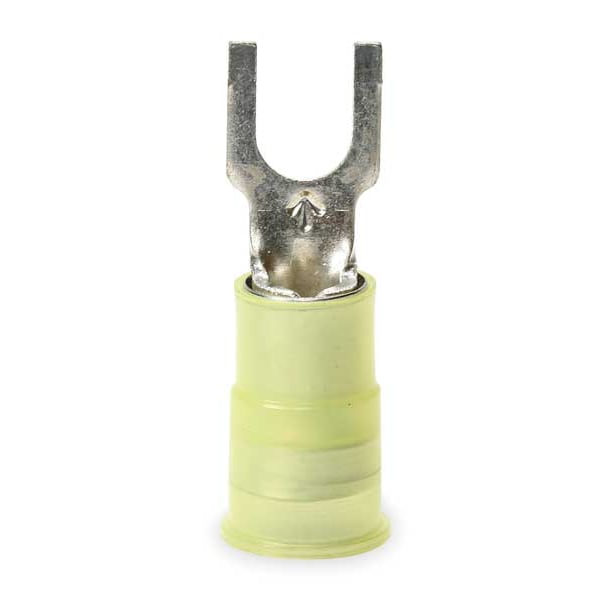

Terminal de horquilla de bloque de nylon de calibre 12-10 para tornillo de 8, paquete con 50 piezas.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Connection Material | Copper |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Overall Length | 1.03 in |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.32 in |
| Terminal Type | Block |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Barrel Inside Dia. | 0.135 in |
| RoHS Compliant | Yes |
| Seam Style | Butted |
| Barrel Style | Insulation Grip |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Insulation Material | Nylon |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 12 AWG |
| Terminal Shape | Fork |
| Tongue Thickness | 0.04 in |
| Tongue Width | 0.32 in |
| Barrel Length | 0.55 in |
| Insulation Dia | 0.250 Inch |
| Package Quantity | 50 |
