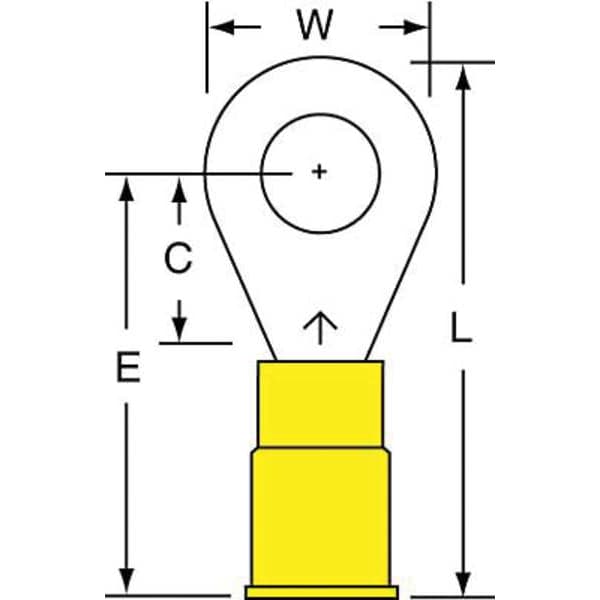

Terminal de anillo de nylon de 12-10 AWG, 1/4" de diámetro de perno, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Max. Temp. | 221 deg F |
| Overall Length | 1.26 in |
| Standards | CSA Certified, UL Listed |
| Seam | Brazed |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.53 in |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Seam Style | Butted |
| Barrel Inside Diameter | 0.14 in |
| Barrel Style | Butted |
| Tongue Thickness | 0.04 in |
| Hole Spacing | 0.44 in |
| Tongue Width | 0.53 in |
| Maximum Wire Size | 10 AWG |
| Special Features | Corrosion-Resistant, Funnel-Designed, Seamless Brass Sleeve |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Insulation Coverage | Partial Coverage |
| Tongue Length | 1.01 in |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| Contact Material | Copper |
| Minimum Wire Size | 12 AWG |
| Terminal Shape | Standard Ring Tongue |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | -40 deg F |
| Maximum Voltage | 1,000 V |
| Insulation Material | Nylon |
| RoHS Compliant | Yes |
| Barrel Length | 1/4 in |
| Package Quantity | 500 |
