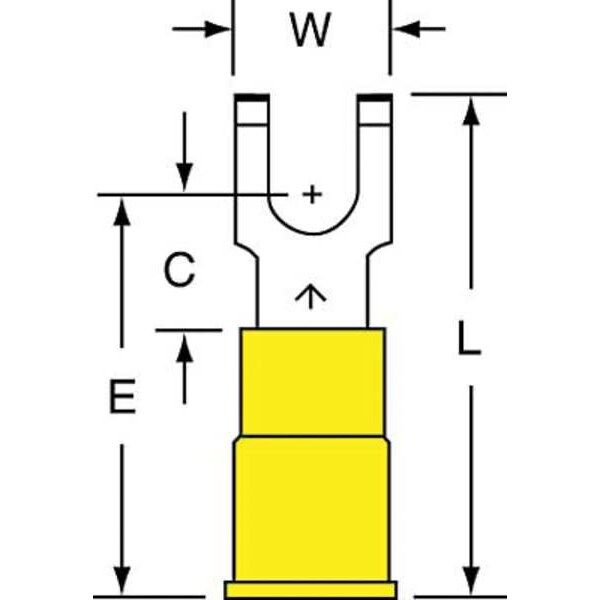

Terminal de horquilla de bloque de vinilo de calibre 12-10 para tornillo #10. Paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Overall Length | 1.03 in |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Connection Material | Copper |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.32 in |
| Seam | Butted |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Terminal Type | Block |
| Barrel Inside Diameter | 0.135 in |
| Minimum Conductor Size | 12 AWG |
| Barrel Length | 1/4 in |
| Fork Type | Block |
| Maximum Insulation Outer Diameter | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Clearance (C) | 0.29 in |
| Maximum Conductor Size | 10 AWG |
| Terminal Style | Flanged Block |
| Dimension E | 0.84 in |
| Package Quantity | 500 |
