12-10 AWG Vinyl Locking Fork Terminal #10 Stud PK500
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Yellow |
| Terminal Connection | Crimp |
| Seam | Brazed |

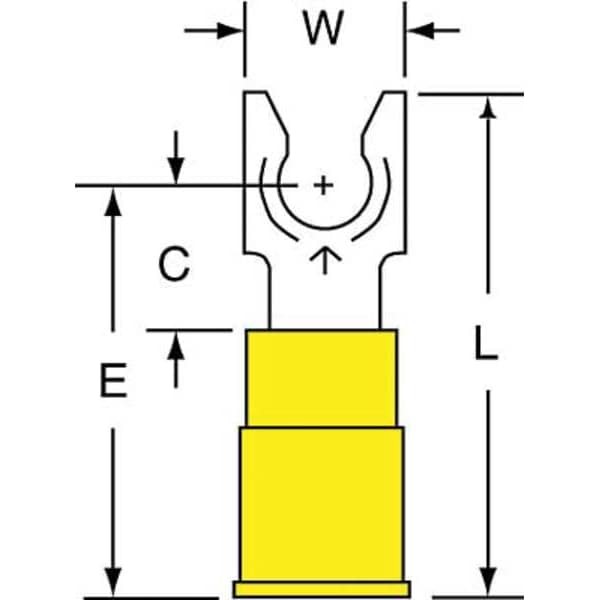

| Tongue Width - Wire Connector | 0.32 in |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Terminal Type | Locking |
| Connection Material | Copper |
| Overall Length | 1.03 in |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed |
| Dimension E | 0.83 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Maximum Insulation Outer Diameter | 1/4 in |
| Stud Diameter | 0.19 in |
| Barrel Inside Diameter | 0.135 in |
| Clearance (C) | 0.28 in |
| Maximum Lock Width | 0.36 in |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Package Quantity | 500 |
