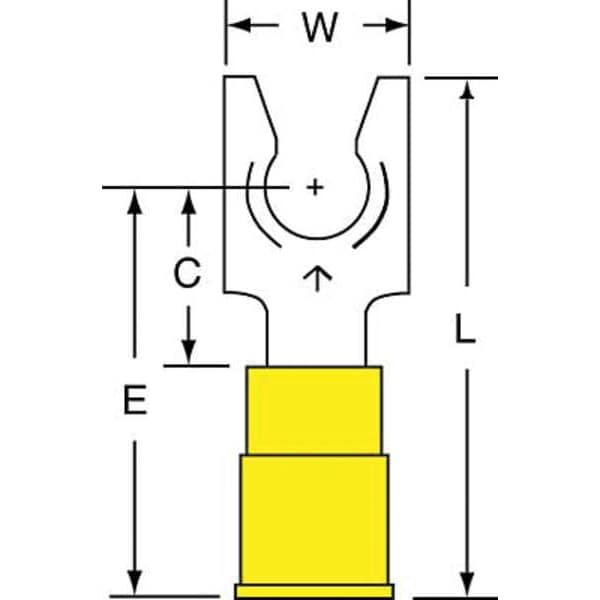

Terminal de horquilla con bloqueo de vinilo para cable de calibre 12-10, con perno de 1/4 de pulgada, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Connection Material | Copper |
| Item | Fork Terminal |
| Terminal Connection | Crimp |
| Terminal Type | Locking |
| Max. Voltage | 600 V |
| Overall Length | 1.24 in |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.44 in |
| Seam | Brazed |
| Clearance (C) | 0.44 in |
| Barrel Inside Diameter | 0.135 in |
| Overall Width | 0.43 in |
| Stud Diameter | 1/4 in |
| Maximum Insulation Outer Diameter | 1/4 in |
| Dimension E | 0.99 in |
| Barrel Length | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Maximum Lock Width | 0.48 in |
| Package Quantity | 500 |
