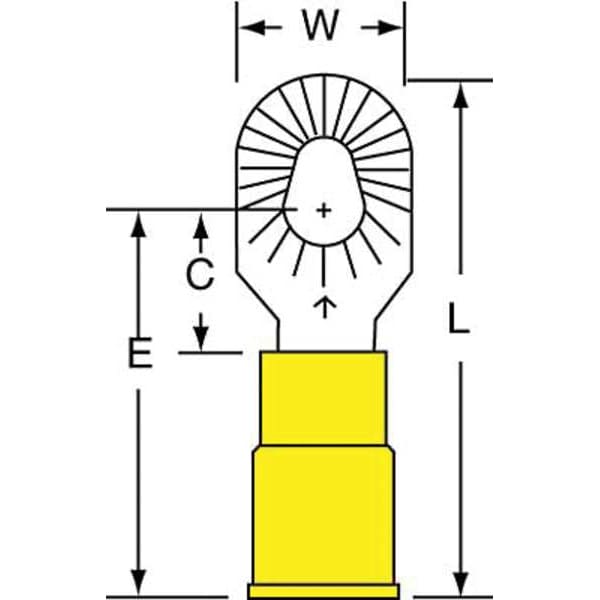

Terminal de anillo de vinilo de calibre 12-10 para pernos #6, #8, #10, paquete de 500 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6, #8, and #10 |
| Insulation Color | Yellow |
| Terminal Type | Multi-Stud |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.39 in |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Item | Ring Terminal |
| Overall Length | 1.19 in |
| Maximum Voltage | 600 V |
| Minimum Conductor Size | 12 AWG |
| Maximum Conductor Size | 10 AWG |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Tongue Width | 0.39 in |
| Contact Material | Copper |
| Package Quantity | 500 |
