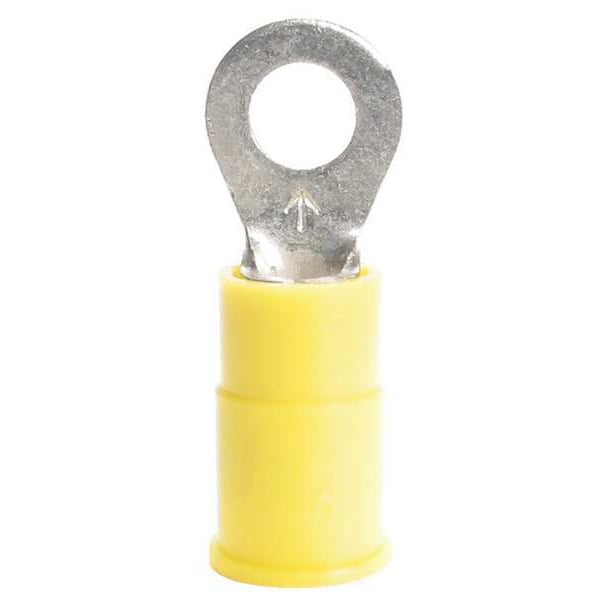

12-10 AWG Vinyl Ring Terminal #6 Stud PK25
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.84 in |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Terminal Type | Ring |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.38 in |
| Max. Voltage | 1,000 V |
| Seam | Butted |
| Connection Material | Tin-Plated Copper |
| Maximum Conductor Size | 10 AWG |
| Barrel Length | 1/4 in |
| Clearance (C) | 0.29 in |
| Minimum Conductor Size | 12 AWG |
| Barrel Inside Diameter | 0.135 in |
| Terminal Style | Standard |
| Maximum Insulation Outer Diameter | 1/4 in |
| Dimension E | 0.84 in |
| Ring Type | Standard |
| Minimum Stud Diameter | 0.19 in |
| Package Quantity | 25 |
