Terminal de ojo aislado retráctil con bloqueo para cable de calibre 16-14, con espiga de 1/4" en paquete de 250 piezas.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Overall Length | 1.1 in |
| Connection Material | Copper |
| Terminal Type | Locking |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |

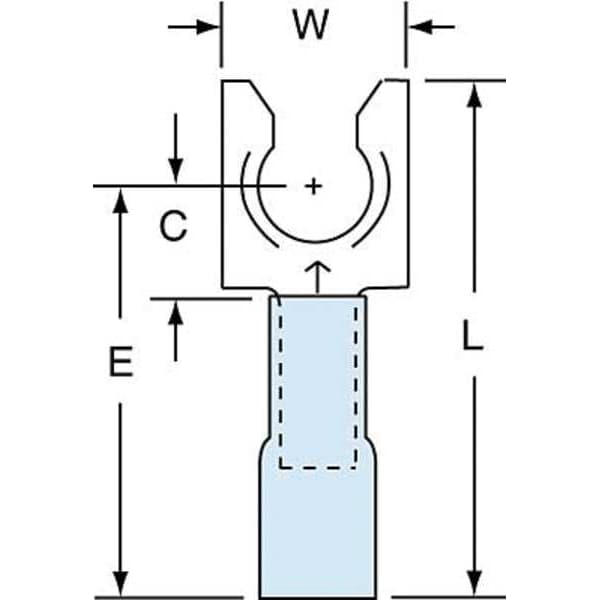

| Tongue Width - Wire Connector | 0.43 in |
| Seam | Brazed |
| Clearance (C) | 0.27 in |
| Minimum Conductor Size | 16 AWG |
| Barrel Inside Diameter | 0.09 in |
| Dimension E | 0.85 in |
| Maximum Conductor Size | 14 AWG |
| Barrel Length | 1/4 in |
| Stud Diameter | 1/4 in |
| Package Quantity | 250 |
