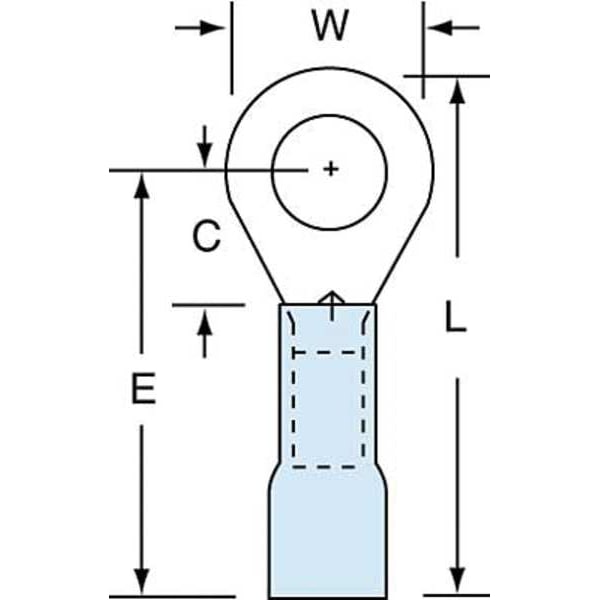

Terminal de anillo termocontraíble de calibre 16-14 con perno de 1/4", paquete de 250 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Overall Length | 1.1 in |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.47 in |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Item | Ring Terminal |
| Seam | Brazed |
| Maximum Operating Temperature (Celsius) | 105°C |
| Minimum Conductor Size | 16 AWG |
| Connection Width | 1/4 in |
| Maximum Conductor Size | 14 AWG |
| Package Quantity | 250 |
