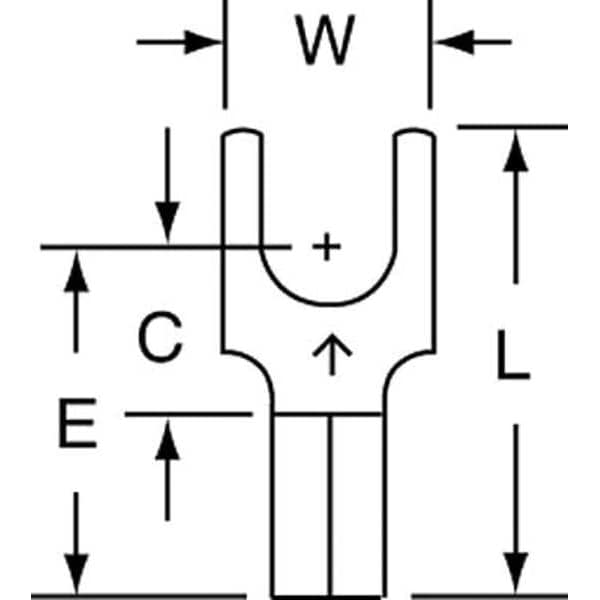

Terminal de horquilla de bloque no aislado de 16-14 AWG para tornillo #10, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #10 |
| Insulation Color | Bare |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.3 in |
| Max. Voltage | 600 V |
| Item | Fork Terminal |
| Seam | Butted |
| Connection Material | Copper |
| Terminal Type | Block |
| Max. Temp. | 347 deg F |
| Overall Length | 0.65 in |
| Minimum Stud Diameter | 0.19 in |
| Insulation Material | Non-insulated |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Package Quantity | 1000 |
