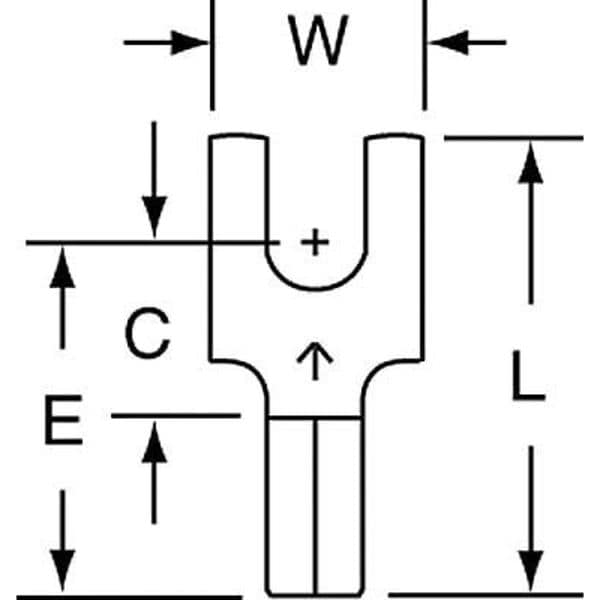

Terminal de horquilla de bloque no aislado para calibre 16-14 AWG, con una longitud de 6 para un paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Max. Temp. | 900 deg F |
| Connection Type | Crimp |
| Seam | Butted |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.3 in |
| Connection Material | Steel |
| Item | Fork Terminal |
| Overall Length | 0.65 in |
| Terminal Connection | Crimp |
| Terminal Type | Block |
| Standards | CSA Certified, UL Listed |
| Maximum Voltage | 600 V |
| Tongue Width | 0.3 in |
| Barrel Length | 1/4 in |
| Clearance (C) | 1/4 in |
| Barrel Inside Diameter | 0.09 in |
| Dimension E | 1/2 in |
| Minimum Conductor Size | 16 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Insulation Material | Non-insulated |
| Material | Copper |
| Maximum Conductor Size | 14 AWG |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Seam Style | Butted |
| Package Quantity | 1000 |
