Terminal de ojal no aislado de calibre 16-14, con tornillo #10, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #10 |
| Insulation Color | Bare |
| Connection Material | Steel |
| Seam | Butted |
| Item | Fork Terminal |
| Max. Temp. | 900 deg F |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |

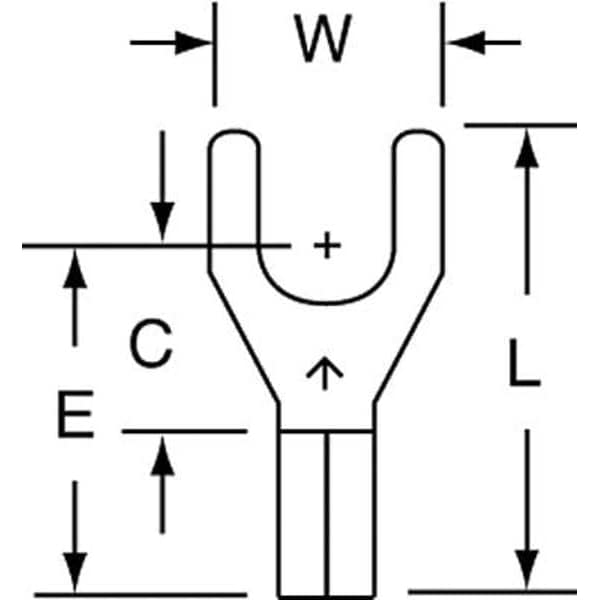

| Tongue Width - Wire Connector | 0.34 in |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.7 in |
| Maximum Conductor Size | 14 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Material | Copper |
| Clearance (C) | 0.29 in |
| Insulation Material | Non-insulated |
| Dimension E | 0.54 in |
| Fork Type | High Temp |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 16 AWG |
| Barrel Inside Diameter | 0.09 in |
| Terminal Style | High Temp |
| Package Quantity | 1000 |
