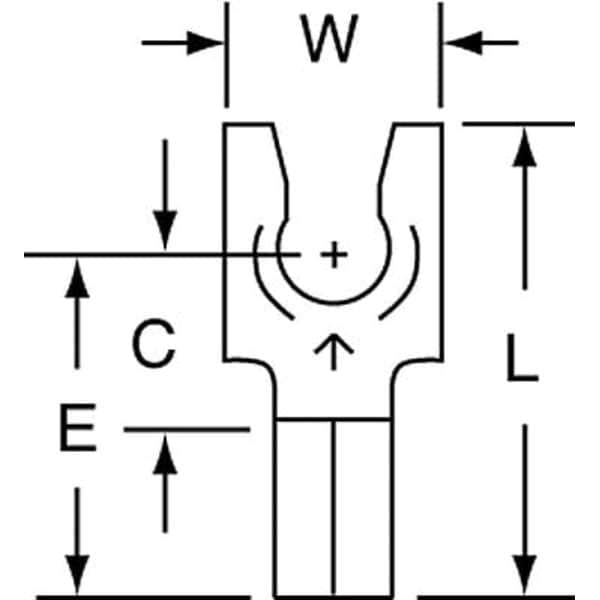

Terminal de horquilla bloqueable sin aislamiento de calibre 16-14, para perno #8, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #8 |
| Insulation Color | Bare |
| Overall Length | 0.68 in |
| Seam | Butted |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Terminal Type | Locking |
| Connection Type | Crimp |
| Max. Temp. | 347 deg F |
| Item | Fork Terminal |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.3 in |
| Maximum Lock Width | 0.34 in |
| Stud Diameter | 0.164 in |
| Clearance (C) | 1/4 in |
| Barrel Inside Diameter | 0.09 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 14 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Dimension E | 1/2 in |
| Minimum Conductor Size | 16 AWG |
| Insulation Material | Non-insulated |
| Package Quantity | 1000 |
