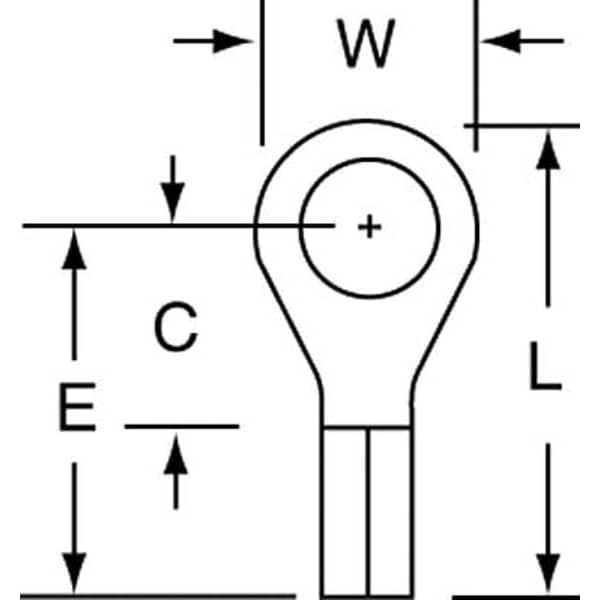

16-14 AWG Non-Insulated Ring Terminal #10 Stud PK1000
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Connection | Crimp |
| Connection Material | Steel |
| Terminal Type | Standard |
| Max. Temp. | 900 deg F |
| Tongue Width - Wire Connector | 0.33 in |
| Seam | Butted |
| Connection Type | Crimp |
| Overall Length | 0.7 in |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Maximum Voltage | 600 V |
| Minimum Conductor Size | 16 AWG |
| Maximum Operating Temperature (Celsius) | 482°C |
| Connection Width | 0.19 in |
| Insulation Material | Non-insulated |
| Maximum Conductor Size | 14 AWG |
| Contact Material | Nickel Alloy |
| Seam Style | Butted |
| Minimum Wire Size | 16 AWG |
| Termination Style | Crimp |
| Maximum Wire Size | 14 AWG |
| Tongue Width | 0.33 in |
| Package Quantity | 1000 |
