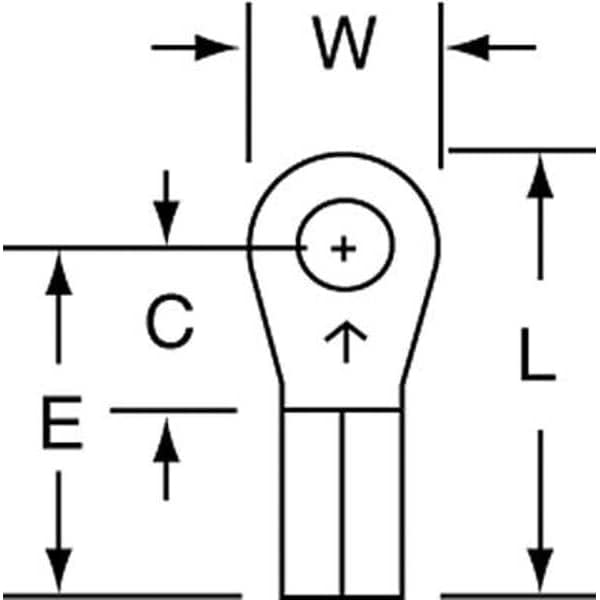

Terminal de anillo no aislado de calibre 16-14, #4 Estudio, paquete de 1000.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #4 |
| Insulation Color | Bare |
| Overall Length | 0.6 in |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Max. Temp. | 347 deg F |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 1/4 in |
| Standards | CSA Certified, UL Listed |
| Seam | Butted |
| Connection Material | Copper |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Connection Width | 0.112 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Insulation Material | Non-insulated |
| Package Quantity | 1000 |
