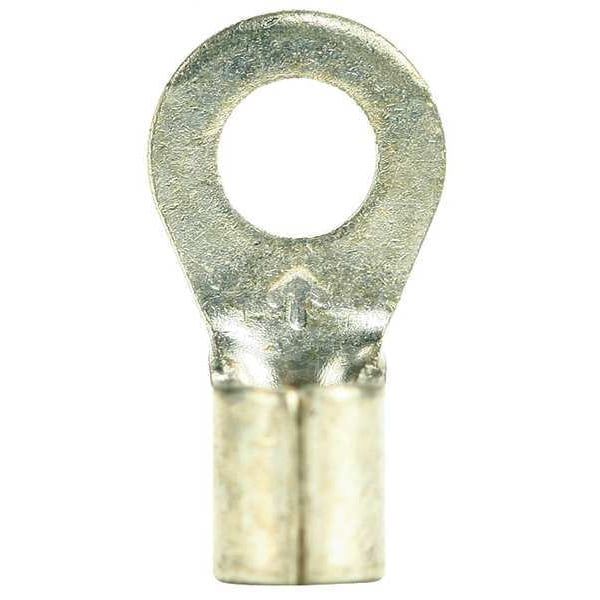

Terminal anular sin aislar de calibre 16-14, con pasador #6. Paquete de 100 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Max. Temp. | 900 deg F |
| Terminal Type | Ring |
| Seam | Butted |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Material | Steel |
| Overall Length | 0.6 in |
| Tongue Width - Wire Connector | 1/4 in |
| Item | Ring Terminal |
| Maximum Voltage | 600 V |
| Insulation Material | Non-insulated |
| Connection Width | 0.138 in |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Seam Style | Butted |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp |
| Contact Material | Nickel Alloy |
| Tongue Width | 1/4 in |
| Minimum Wire Size | 16 AWG |
| Package Quantity | 100 |
