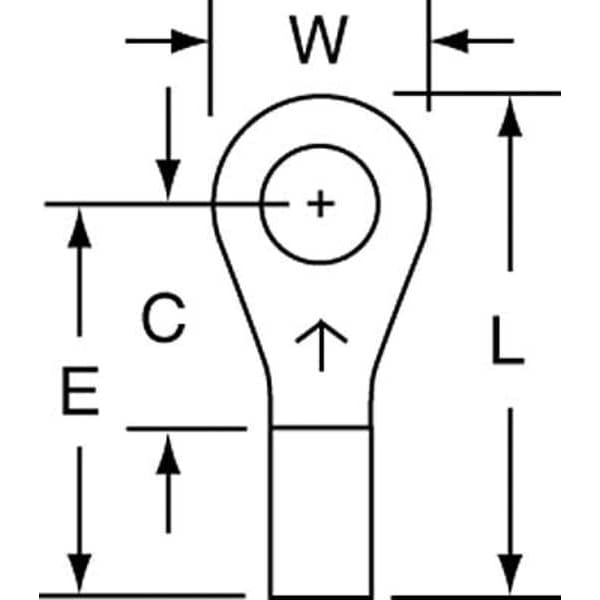

Terminal de anillo no aislado de calibre 16-14 para perno #8 - paquete de 1000
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Type | Crimp |
| Max. Temp. | 347 deg F |
| Overall Length | 0.74 in |
| Connection Material | Copper |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Tongue Thickness | 0.03 in |
| Maximum Operating Temperature | 347 deg F |
| Tongue Width | 0.31 in |
| Terminal Shape | Standard Ring Tongue |
| Tongue Length | 0.49 in |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Seam Style | Brazed |
| Hole Spacing | 0.33 in |
| Barrel Length | 1/4 in |
| Insulation Coverage | None |
| RoHS Compliant | Yes |
| Special Features | Beveled Mouth, Corrosion-Resistant, Reliable Performance, Secure Fit |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.09 in |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| Insulation Material | None |
| Minimum Operating Temperature | 347 deg F |
| Contact Material | Copper |
| Maximum Voltage | 1,000 V |
| Termination Style | Crimp |
| Barrel Style | Brazed |
| Connection Width | 0.164 in |
| Package Quantity | 1000 |
