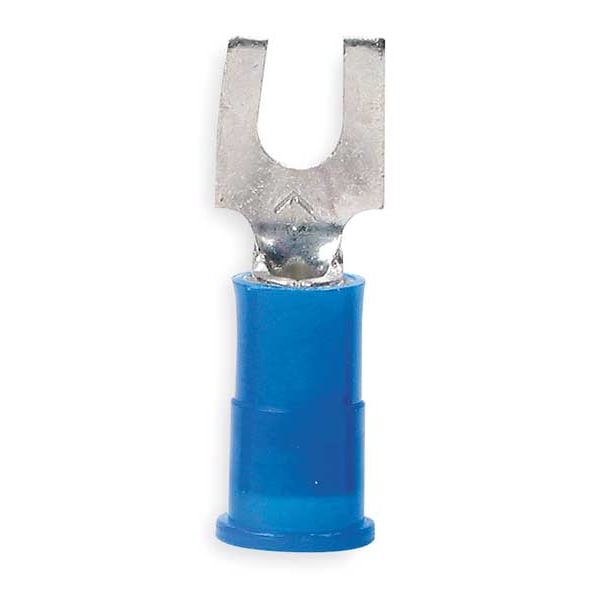

16-14 AWG Nylon Block Fork Terminal #10 Stud PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Overall Length | 0.86 in |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Item | Fork Terminal |
| Tongue Width - Wire Connector | 0.3 in |
| Terminal Connection | Crimp |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Block |
| Seam | Brazed |
| Connection Material | Copper |
| Tongue Width | 0.3 in |
| Minimum Wire Size | 16 AWG |
| Barrel Length | 0.46 in |
| Contact Material | Copper |
| Minimum Operating Temperature | -40 deg F |
| Contact Finish | Tin |
| Tongue Thickness | 0.03 in |
| Seam Style | Butted |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | Yes |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Terminal Shape | Fork |
| Maximum Wire Size | 14 AWG |
| Maximum Voltage | 600 V |
| Special Features | Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires |
| Material | ETP Copper |
| Barrel Inside Diameter | 0.09 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Dimension E | 0.71 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Clearance (C) | 1/4 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Package Quantity | 100 |
