Terminal de horquilla de nylon para cable de calibre 16-14 con agujero para sujetar de tamaño 10, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Overall Length | 0.91 in |
| Tongue Width - Wire Connector | 0.34 in |
| Item | Fork Terminal |
| Connection Material | Copper |
| Terminal Type | Standard |
| Seam | Brazed |
| Contact Finish | Tin |
| Contact Material | Copper |
| Special Features | Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires |
| Termination Style | Crimp |
| Terminal Shape | Fork |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 14 AWG |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 16 AWG |
| Minimum Operating Temperature | -40 deg F |
| Tongue Width | 0.34 in |
| Barrel Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | Nylon |
| Seam Style | Butted |
| Maximum Insulation Outer Diameter | 0.17 in |

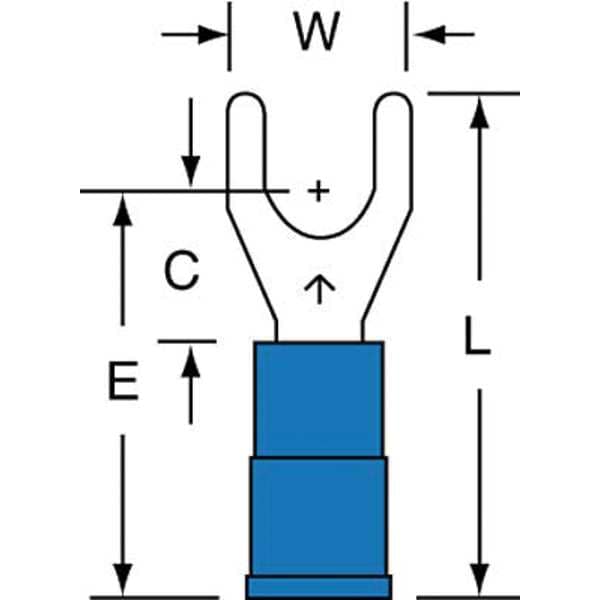

| Clearance (C) | 0.29 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Dimension E | 3/4 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Barrel Inside Diameter | 0.09 in |
| Material | ETP Copper |
| Package Quantity | 1000 |
