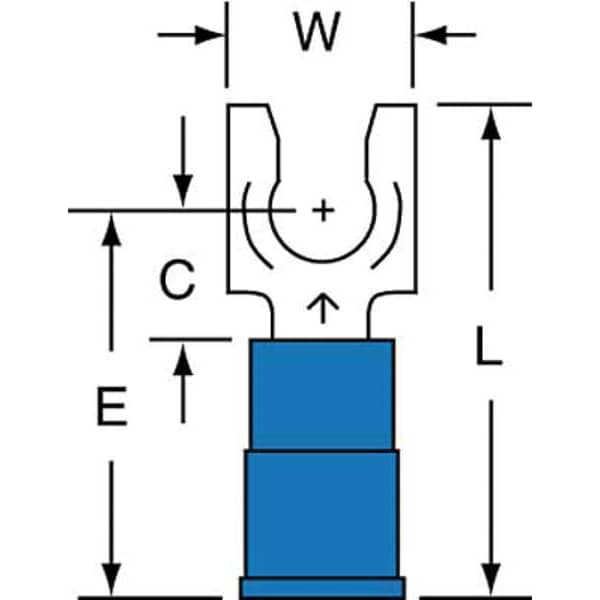

Terminal de horquilla con bloqueo de nailon de calibre 16-14, para tornillo de tamaño #10, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Item | Fork Terminal |
| Terminal Type | Locking |
| Overall Length | 0.89 in |
| Seam | Brazed |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.32 in |
| Connection Type | Crimp |
| Barrel Length | 0.46 in |
| Tongue Width | 0.32 in |
| Terminal Shape | Fork |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Seam Style | Butted |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Minimum Wire Size | 16 AWG |
| Barrel Style | Insulation Grip |
| Contact Material | Copper |
| RoHS Compliant | Yes |
| Maximum Wire Size | 14 AWG |
| Tongue Thickness | 0.03 in |
| Insulation Dia | 0.17 Inch |
| Package Quantity | 1000 |
