Terminal de horquilla con bloqueo de vinilo para cable calibre 16-14, con perno de 1/4 de pulgada, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Connection Material | Copper |
| Connection Type | Crimp |
| Seam | Butted |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Locking |

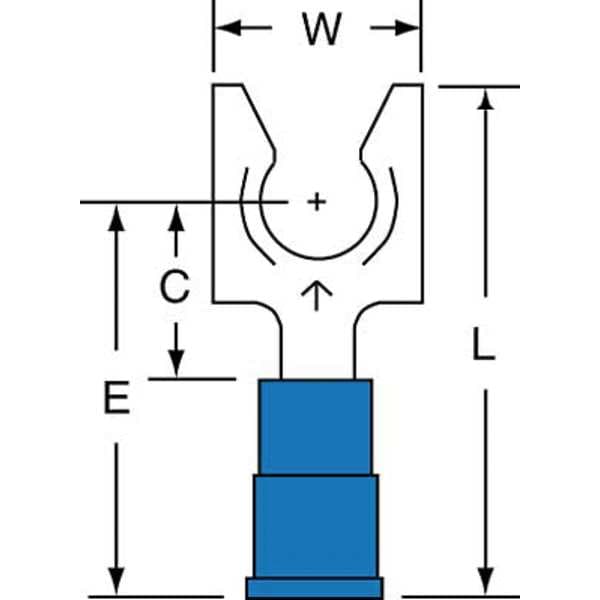

| Tongue Width - Wire Connector | 0.43 in |
| Item | Fork Terminal |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Overall Length | 1.1 in |
| Terminal Connection | Crimp |
| Dimension E | 0.85 in |
| Clearance (C) | 0.4 in |
| Minimum Conductor Size | 16 AWG |
| Stud Diameter | 1/4 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Barrel Inside Diameter | 0.09 in |
| Maximum Conductor Size | 14 AWG |
| Maximum Insulation Outer Diameter | 0.17 in |
| Maximum Lock Width | 0.48 in |
| Barrel Length | 1/4 in |
| Package Quantity | 1000 |
