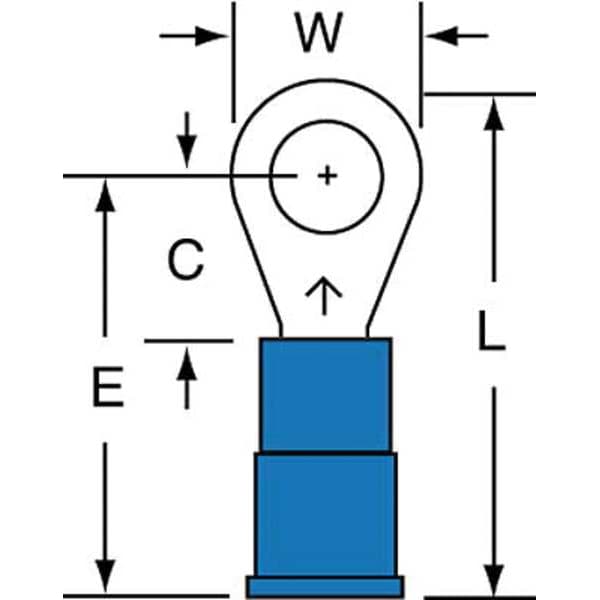

Terminal de anillo de vinilo de calibre 16-14 con perno de medida #10, paquete con 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.33 in |
| Standards | CSA Certified, UL Listed |
| Connection Material | Copper |
| Overall Length | 0.9 in |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Seam | Butted |
| Connection Type | Crimp |
| Maximum Voltage | 600 V |
| Contact Material | Copper |
| Minimum Wire Size | 16 AWG |
| Termination Style | Crimp |
| Tongue Width | 0.33 in |
| Maximum Wire Size | 14 AWG |
| Seam Style | Butted |
| Package Quantity | 1000 |
