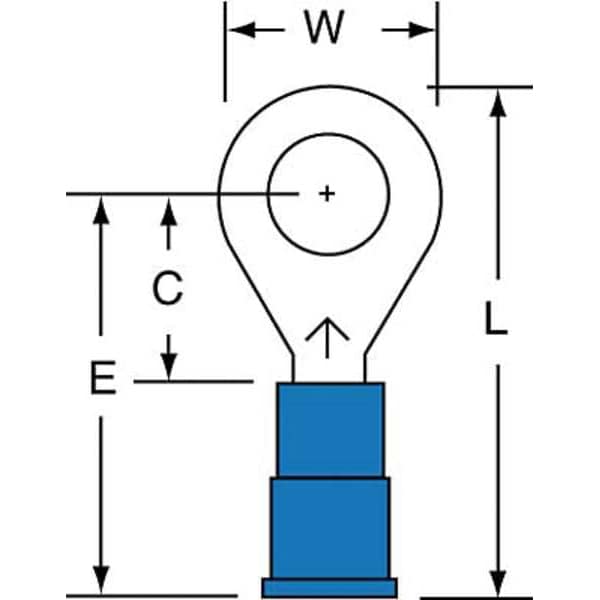

Terminal de anillo de vinilo de calibre 16-14 con perno de 1/4" Paquete con 1000 unidades
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Overall Length | 1.08 in |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.47 in |
| Standards | CSA Certified, UL Listed |
| Connection Width | 1/4 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AWG |
| Package Quantity | 1000 |
