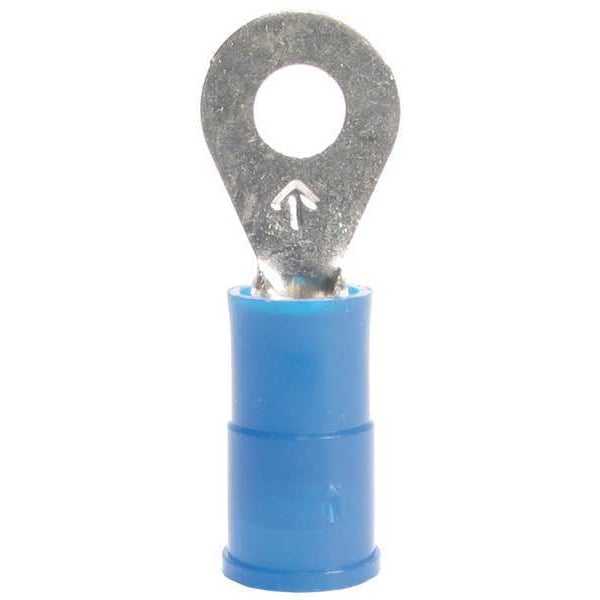

16-14 AWG Vinyl Ring Terminal 1/4" Stud PK25
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Terminal Type | Ring |
| Tongue Width - Wire Connector | 0.47 in |
| Connection Type | Crimp |
| Seam | Butted |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 1,000 V |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Overall Length | 1.08 in |
| Connection Material | Tin-Plated Copper |
| Terminal Connection | Crimp |
| Maximum Voltage | 1,000 V |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Barrel Inside Diameter | 0.09 in |
| Maximum Conductor Size | 14 AWG |
| Material | Plastic |
| Terminal Style | Standard |
| Barrel Length | 1/4 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Ring Type | Standard |
| Dimension E | 0.85 in |
| Maximum Recommended Voltage Rating | 600V |
| Clearance (C) | 0.4 in |
| Minimum Conductor Size | 16 AWG |
| Minimum Stud Diameter | 1/4 in |
| Tongue Width | 0.47 in |
| Contact Material | Copper |
| Seam Style | Butted |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp |
| Package Quantity | 25 |
