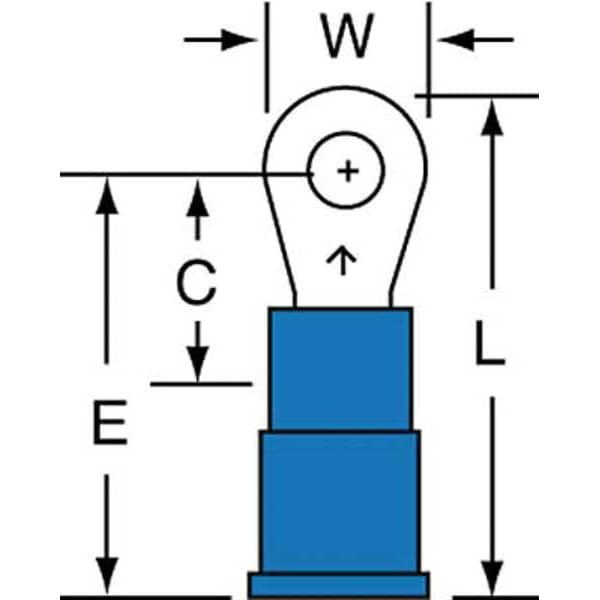

Terminal de anillo de vinilo de calibre 16-14 con calibre #4, paquete de 1000 unidades.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #4 |
| Insulation Color | Blue |
| Connection Type | Crimp |
| Overall Length | 0.8 in |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 1/4 in |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Terminal Type | Standard |
| Maximum Voltage | 600 V |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 16 AWG |
| Connection Width | 0.112 in |
| Seam Style | Brazed |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 14 AWG |
| Contact Material | Copper |
| Termination Style | Crimp |
| Tongue Width | 1/4 in |
| Package Quantity | 1000 |
