22-18 AWG Heat-Shrink Locking Fork Terminal #6 Stud PK250
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Heat Shrink |
| Stud Size | #6 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Seam | Brazed |
| Tongue Width - Wire Connector | 1/4 in |
| Overall Length | 1 in |
| Terminal Type | Locking |
| Connection Material | Copper |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Barrel Inside Diameter | 0.07 in |
| Stud Diameter | 0.138 in |
| Minimum Conductor Size | 22 AWG |

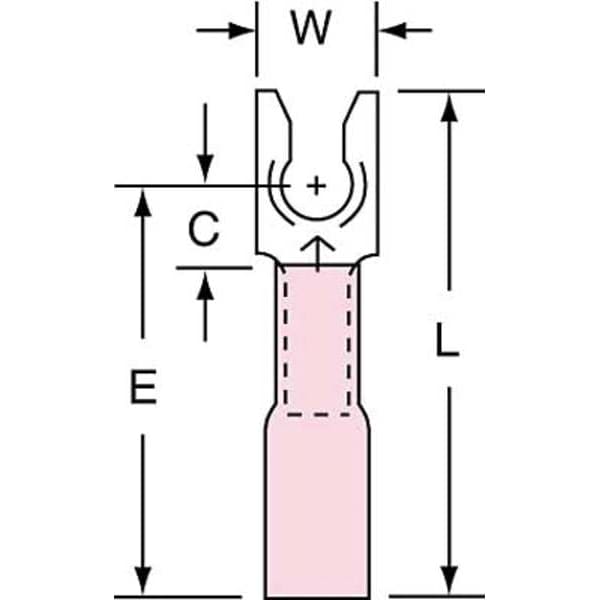

| Clearance (C) | 0.15 in |
| Maximum Conductor Size | 18 AWG |
| Dimension E | 0.76 in |
| Barrel Length | 1/4 in |
| Package Quantity | 250 |
