Terminal de horquilla de bloque no aislado para cable de calibre 22-18, con un perno del número 8, paquete con 1000 piezas.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Red |
| Seam | Brazed |
| Item | Fork Terminal |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.3 in |
| Terminal Type | Block |
| Overall Length | 0.65 in |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Max. Temp. | 347 deg F |
| Connection Material | Copper |
| Termination Style | Crimp |
| Maximum Operating Temperature | 347 deg F |
| Insulation Material | None |
| Contact Material | Copper |
| Terminal Shape | Fork |
| RoHS Compliant | Yes |
| Insulation Coverage | None |
| Seam Style | Brazed |
| Maximum Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Minimum Wire Size | 22 AWG |
| Barrel Length | 1/4 in |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.3 in |
| Special Features | Beveled Mouth Offers Easy Insertion of Wires |

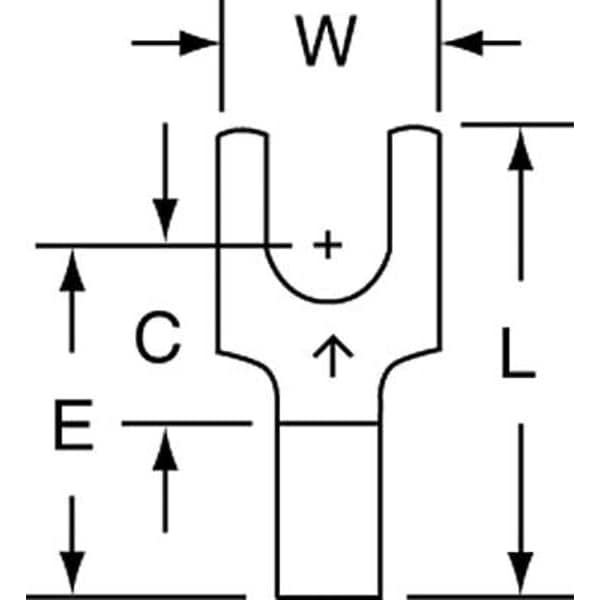

| Clearance (C) | 1/4 in |
| Barrel Inside Diameter | 0.07 in |
| Stud Diameter | 0.164 in |
| Dimension E | 1/2 in |
| Package Quantity | 1000 |
