Terminal en horquilla no aislado de calibre 22-18 para perno de tamaño #10 paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #10 |
| Insulation Color | Bare |
| Seam | Butted |
| Terminal Connection | Crimp |
| Max. Temp. | 900 deg F |
| Connection Material | Steel |
| Max. Voltage | 600 V |
| Overall Length | 0.7 in |
| Connection Type | Crimp |
| Terminal Type | Standard |

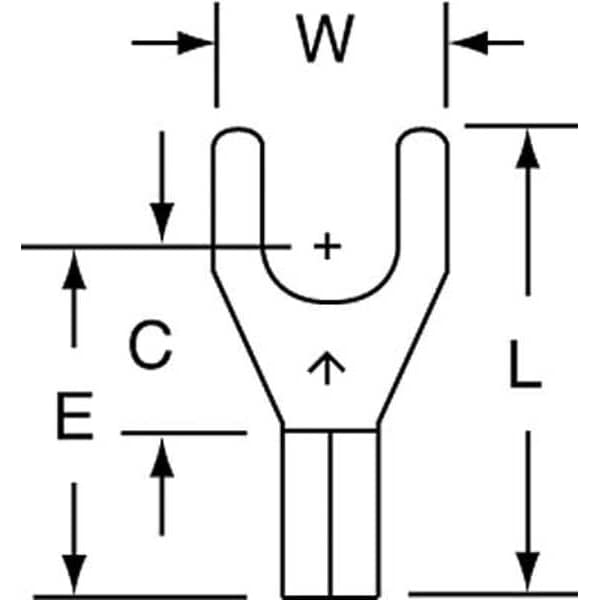

| Tongue Width - Wire Connector | 0.34 in |
| Standards | CSA Certified, UL Listed |
| Item | Fork Terminal |
| Insulation Material | Non-insulated |
| Dimension E | 0.54 in |
| Maximum Conductor Size | 18 AWG |
| Fork Type | High Temp |
| Material | Copper |
| Barrel Inside Diameter | 0.07 in |
| Minimum Conductor Size | 22 AWG |
| Barrel Length | 1/4 in |
| Clearance (C) | 0.29 in |
| Solution for | Wireless Network Infrastructure Accessories |
| Terminal Style | High Temp |
| Package Quantity | 1000 |
