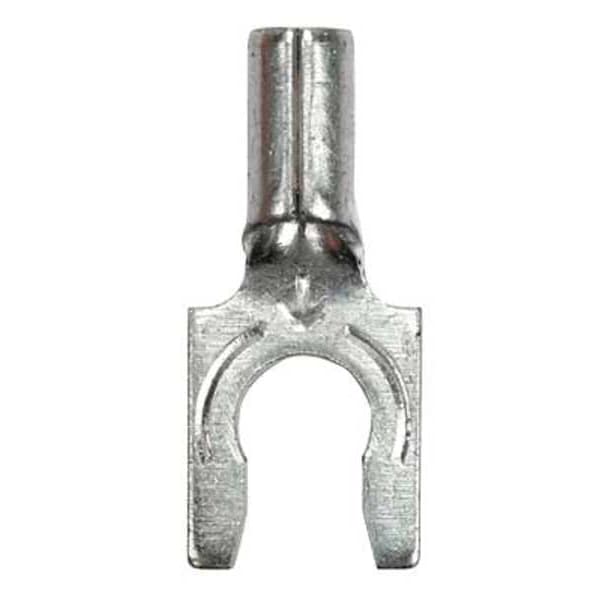

Terminal de horquilla bloqueable sin aislar de calibre 22-18 para perno #6, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Bare |
| Stud Size | #6 |
| Insulation Color | Bare |
| Tongue Width - Wire Connector | 1/4 in |
| Connection Material | Copper |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Overall Length | 0.68 in |
| Seam | Butted |
| Terminal Connection | Crimp |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Max. Temp. | 347 deg F |
| Terminal Type | Locking |
| Dimension E | 1/2 in |
| Insulation Material | Non-insulated |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 1/4 in |
| Minimum Conductor Size | 22 AWG |
| Stud Diameter | 0.138 in |
| Maximum Conductor Size | 18 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Clearance (C) | 1/4 in |
| Maximum Lock Width | 0.27 in |
| Package Quantity | 1000 |
