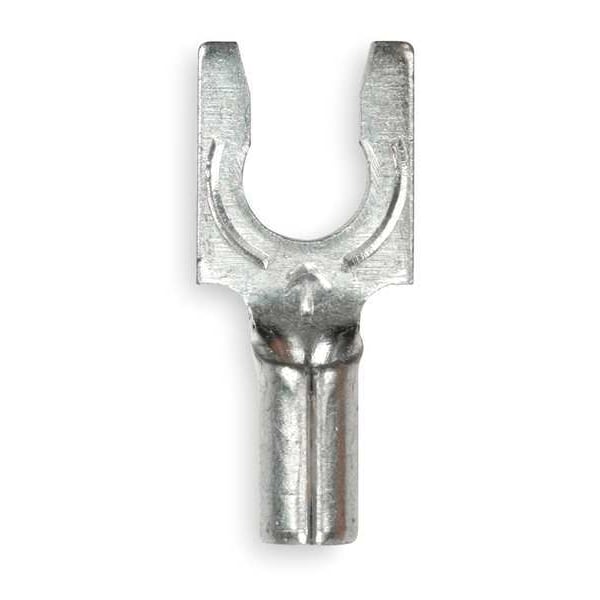

Terminal de horquilla bloqueable no aislado de calibre 22-18, para perno #8, paquete de 100 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Terminal Type | Locking |
| Item | Fork Terminal |
| Connection Type | Crimp |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.3 in |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Overall Length | 0.68 in |
| Terminal Connection | Crimp |
| Max. Temp. | 347 deg F |
| Seam | Butted |
| Maximum Voltage | 600 V |
| Tongue Width | 0.3 in |
| Minimum Conductor Size | 22 AWG |
| Insulation Material | Non-insulated |
| Solution for | Wireless Network Infrastructure Accessories |
| Dimension E | 1/2 in |
| Barrel Inside Diameter | 0.07 in |
| Clearance (C) | 1/4 in |
| Maximum Lock Width | 0.34 in |
| Barrel Length | 1/4 in |
| Maximum Conductor Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 18 AWG |
| Seam Style | Butted |
| Package Quantity | 100 |
