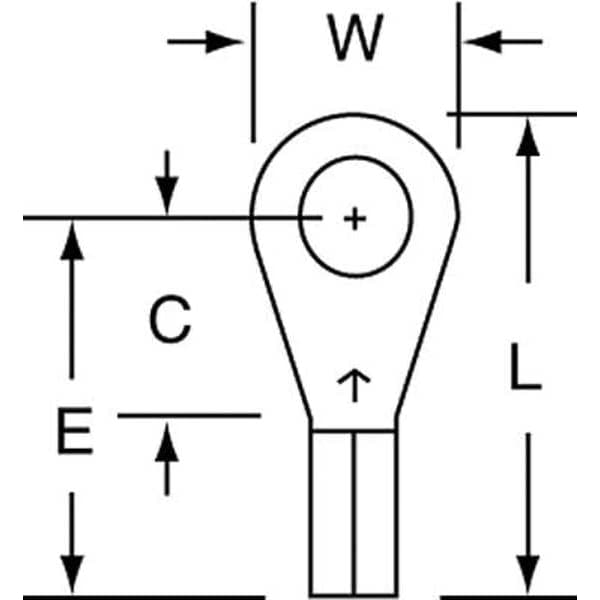

Terminal de anillo sin aislar de 22-18 AWG para espiga #8, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Connection Material | Copper |
| Overall Length | 0.74 in |
| Max. Temp. | 347 deg F |
| Seam | Butted |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.31 in |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Maximum Voltage | 600 V |
| Maximum Conductor Size | 18 AWG |
| Minimum Conductor Size | 22 AWG |
| Connection Width | 0.164 in |
| Insulation Material | Non-insulated |
| Tongue Width | 0.31 in |
| Contact Material | Copper |
| Seam Style | Butted |
| Minimum Wire Size | 22 AWG |
| Termination Style | Crimp |
| Maximum Wire Size | 18 AWG |
| Package Quantity | 1000 |
