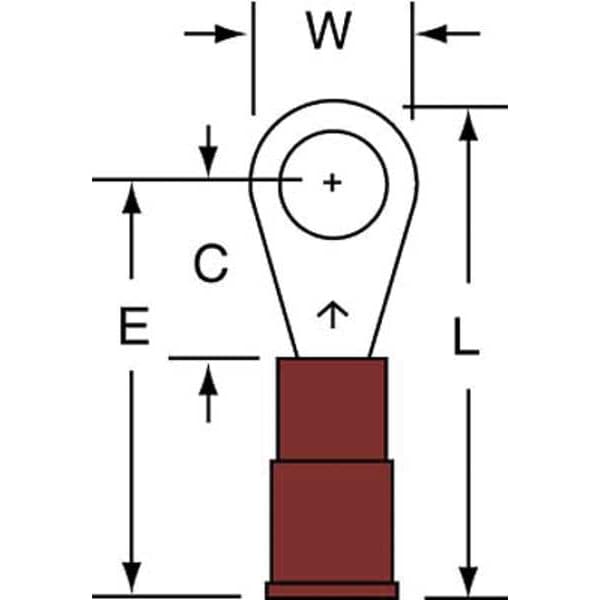

Terminal de anillo de nylon de calibre 22-18 con perno #10, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Red |
| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.92 in |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Connection Material | Copper |
| Barrel Length | 1/4 in |
| Tongue Length | 0.67 in |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 18 AWG |
| Tongue Width | 0.31 in |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.07 in |
| Hole Spacing | 0.33 in |
| Barrel Style | Butted |
| Tongue Thickness | 0.03 in |
| Insulation Material | Nylon |
| Contact Material | Copper |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| Seam Style | Butted |
| Terminal Shape | Standard Ring Tongue |
| Maximum Operating Temperature | 221 deg F |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | -40 deg F |
| Maximum Voltage | 1,000 V |
| Special Features | Corrosion-Resistant, Funnel-Designed, Seamless Brass Sleeve |
| Contact Finish | Tin |
| Connection Width | 0.19 in |
| Package Quantity | 1000 |
