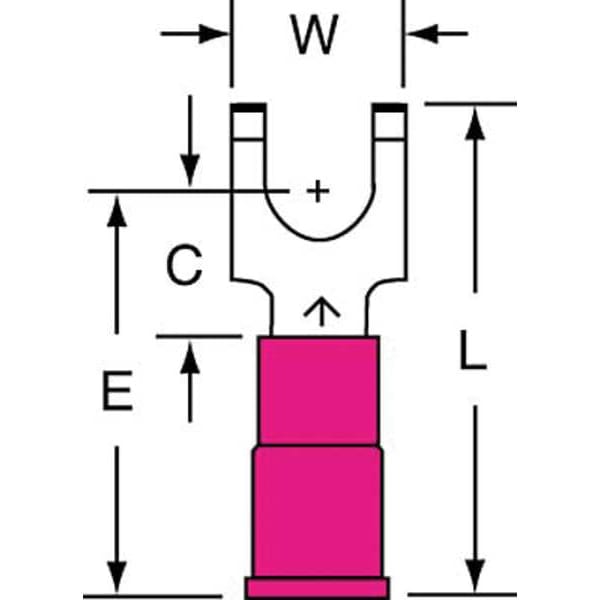

Terminal de horquilla de bloque de vinilo de calibre 22-18 con perno #10, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Red |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Block |
| Max. Voltage | 600 V |
| Seam | Butted |
| Tongue Width - Wire Connector | 0.3 in |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Overall Length | 0.85 in |
| Item | Fork Terminal |
| Connection Material | Copper |
| Minimum Conductor Size | 22 AWG |
| Connection Width | 0.19 in |
| Maximum Conductor Size | 18 AWG |
| Terminal Style | Flanged Block |
| Package Quantity | 1000 |
