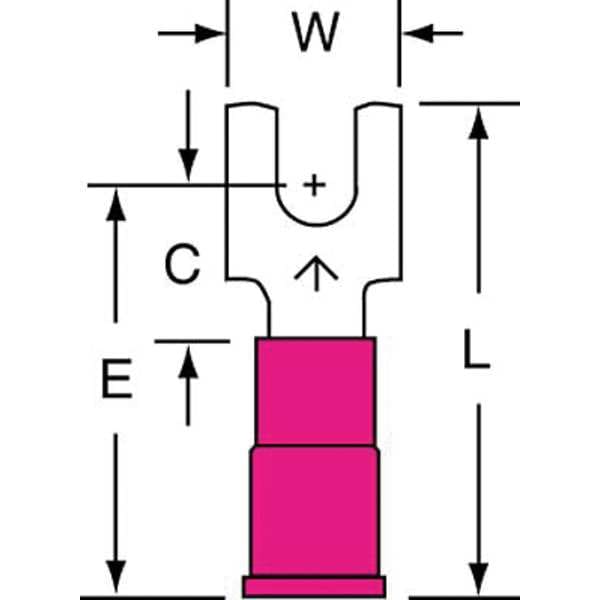

Terminal de bifurcación de bloque de vinilo de 22-18 AWG para perno #6, paquete de 25 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Red |
| Seam | Butted |
| Item | Fork Terminal |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Terminal Type | Block |
| Overall Length | 0.7 in |
| Tongue Width - Wire Connector | 1/4 in |
| Maximum Voltage | 600 V |
| Tongue Width | 1/4 in |
| Minimum Conductor Size | 22 AWG |
| Maximum Conductor Size | 18 AWG |
| Maximum Operating Temperature (Celsius) | 105°C |
| Connection Width | 0.138 in |
| Maximum Wire Size | 18 AWG |
| Seam Style | Butted |
| Minimum Wire Size | 22 AWG |
| Package Quantity | 25 |
