Terminal de horquilla de vinilo de calibre 22-18, estudio #6, paquete de 1000.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Connection Material | Copper |
| Item | Fork Terminal |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Terminal Connection | Crimp |

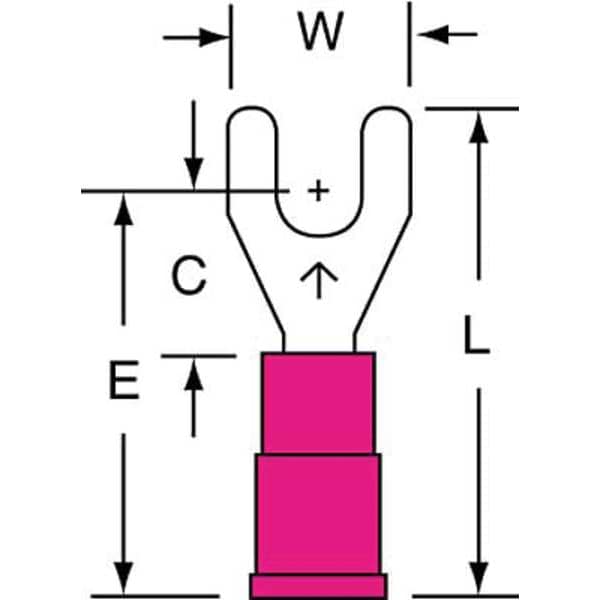

| Tongue Width - Wire Connector | 0.34 in |
| Seam | Brazed |
| Overall Length | 0.9 in |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Dimension E | 0.74 in |
| Barrel Length | 1/4 in |
| Clearance (C) | 0.29 in |
| Minimum Conductor Size | 22 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Barrel Inside Diameter | 0.07 in |
| Package Quantity | 1000 |
