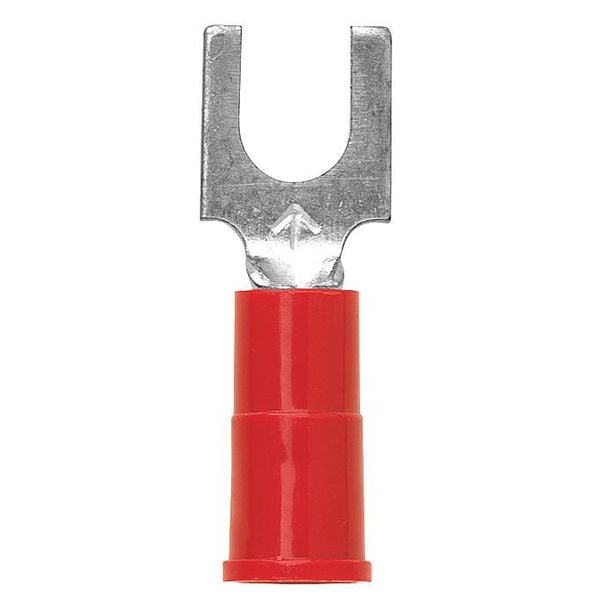

Terminal tipo horquilla de bloqueo de vinilo AWG 22-18, con un perno #8, paquete de 25 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Terminal Connection | Crimp |
| Max. Voltage | 1,000 V |
| Tongue Width - Wire Connector | 0.3 in |
| Connection Material | Tin-Plated Copper |
| Connection Type | Crimp |
| Seam | Butted |
| Item | Fork Terminal |
| Overall Length | 0.9 in |
| Max. Temp. | 221 deg F |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Locking |
| Barrel Inside Dia. | 0.07 in |
| Maximum Voltage | 1,000 V |
| Tongue Width | 0.3 in |
| Insulation Dia | 0.145 Inch |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Seam Style | Butted |
| Package Quantity | 25 |
