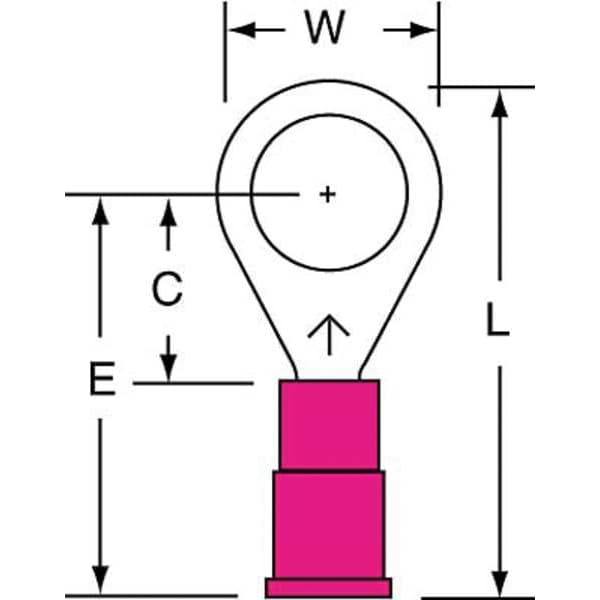

Terminal de anillo de vinilo de 22-18 AWG con perno de 5/16", paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 5/16 in |
| Insulation Color | Red |
| Seam | Brazed |
| Overall Length | 1.08 in |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.47 in |
| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Terminal Connection | Crimp |
| Minimum Conductor Size | 22 AWG |
| Connection Width | 0.315 in |
| Maximum Conductor Size | 18 AWG |
| Package Quantity | 1000 |
