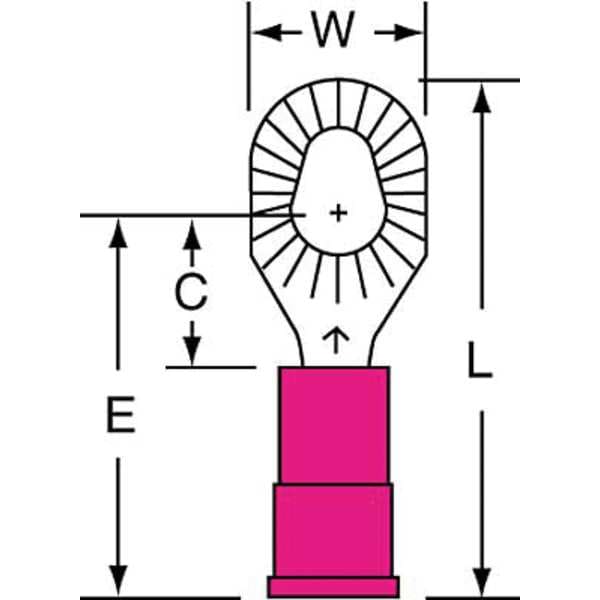

Terminal de anillo de vinilo de 22-18 AWG, #6, #8, #10 Stud PK1000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6, #8, and #10 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Overall Length | 1.01 in |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Connection Material | Copper |
| Item | Ring Terminal |
| Terminal Type | Multi-Stud |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.34 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 600 V |
| Maximum Conductor Size | 18 AWG |
| Minimum Conductor Size | 22 AWG |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Seam Style | Brazed |
| Termination Style | Crimp |
| Tongue Width | 0.34 in |
| Contact Material | Copper |
| Package Quantity | 1000 |
