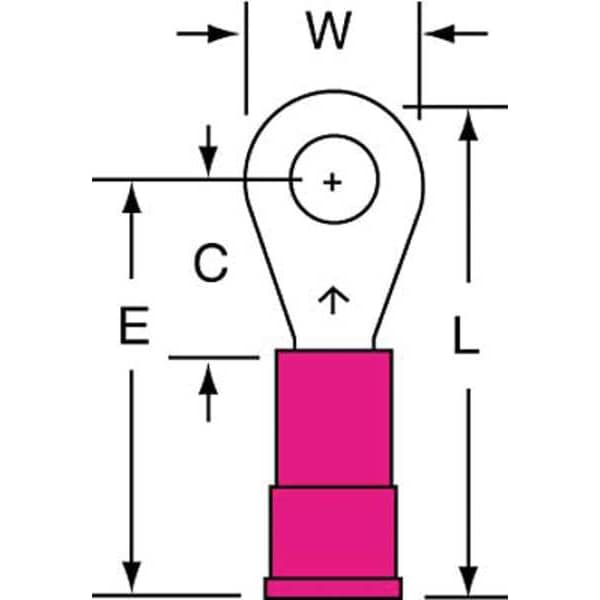

Terminal de anillo de vinilo 22-18 AWG, para perno #8, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Connection Type | Crimp |
| Overall Length | 0.93 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Connection Width | 0.164 in |
| Maximum Operating Temperature (Celsius) | 105°C |
| Maximum Conductor Size | 18 AWG |
| Minimum Conductor Size | 22 AWG |
| Package Quantity | 1000 |
