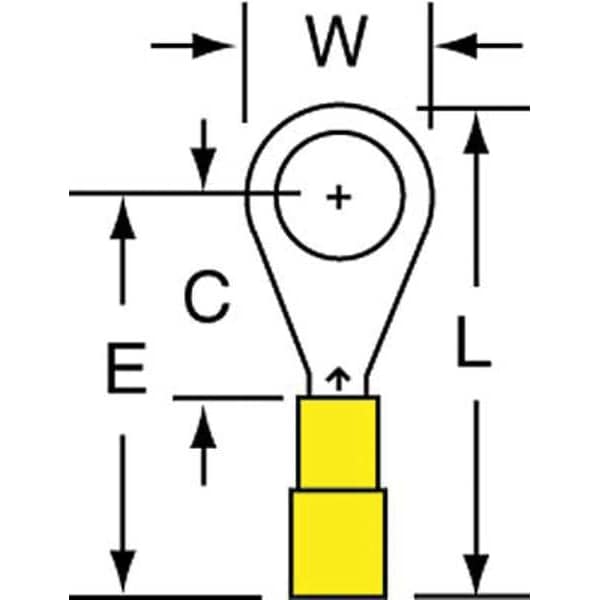

Terminal de anillo de nylon para cable de calibre 26-24, con un tornillo de calibre #8. Paquete con 1000 piezas.
| Wire Range | 26 to 24 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 1/4 in |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.69 in |
| Max. Temp. | 221 deg F |
| Seam | Brazed |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Insulation Material | Nylon |
| Seam Style | Brazed |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | -40 deg F |
| Termination Style | Crimp |
| Tongue Thickness | 0.02 in |
| Barrel Inside Diameter | 0.03 in |
| Hole Spacing | 0.28 in |
| Terminal Shape | Standard Ring Tongue |
| Special Features | Corrosion-Resistant, Flared Portion of the Nylon Sleeve Offers Easy Insertion of Wires, Reliable Performance, Secure Fit |
| Contact Material | Copper |
| Contact Finish | Tin |
| Compatible with Product Type | Building Wire, Fixtures or Luminaires, Signs |
| Minimum Wire Size | 26 AWG |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Brazed |
| Maximum Voltage | 1,000 V |
| Maximum Wire Size | 24 AWG |
| Tongue Width | 1/4 in |
| Connection Width | 0.164 in |
| Package Quantity | 1000 |
