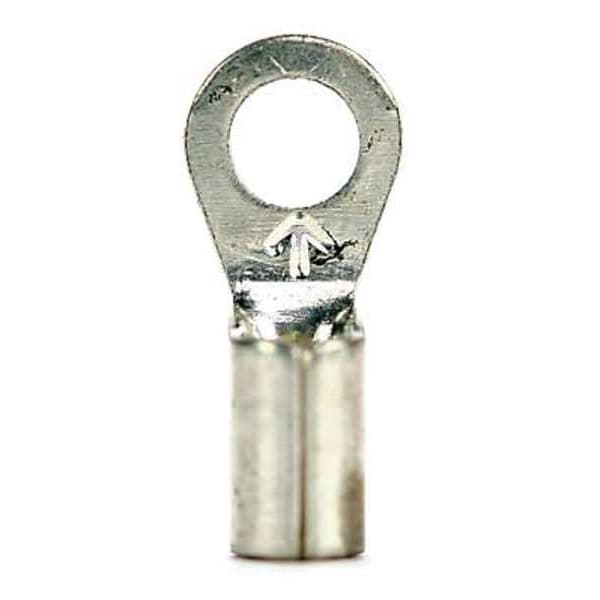

Terminal de anillo sin aislamiento de calibre 6, con perno de 3/8", paquete de 200.
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Seam | Butted |
| Max. Temp. | 900 deg F |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.63 in |
| Connection Material | Steel |
| Terminal Connection | Crimp |
| Overall Length | 1.22 in |
| Connection Type | Crimp |
| Maximum Voltage | 600 V |
| Connection Width | 0.138 in |
| Insulation Material | Non-insulated |
| Contact Material | Nickel Alloy |
| Termination Style | Crimp |
| Seam Style | Butted |
| Maximum Wire Size | 6 AWG |
| Tongue Width | 0.63 in |
| Package Quantity | 200 |
