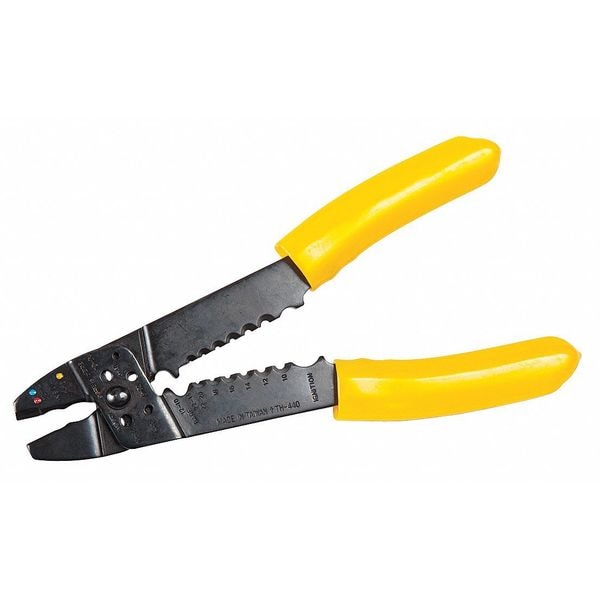

9 1/2 in Wire Stripper 22 to 10 AWG
| Item | Wire Stripper |
|---|---|
| Capacity | 22 to 10 AWG |
| Overall Length | 9-1/2 in |
| Handle Type | Cushion Grip |
| Insulated | No |
| Application | Crimping, Cutting, Stripping |
| Features | Wire Stripping Stations for Circumferencial Cut-Less Effort |
| Adjustable | Manual |
| Strips | Yes |
| Type | Electrical Wire Strippers |
| For Use With | For Broad Range of Insulated and Non-insulated Terminals and Connectors |
| Standards | CSA, UL |
| Cuts | Yes |
| Handle Style | Standard |
| Handle Color | Red |
| For Wire/Cable Type | Solid Wire, Stranded Wire |
| Adjustment Mechanism | Manual |
| Gauges Crimped | 26 to 10 AWG (Insulated), 26 to10 AWG (Noninsulated), 7 to 8 mm (Ignition Part) |
| Minimum Stripping Capacity - Stranded Wire | 22 AWG |
| Grip Style | Standard Cushion |
| Maximum Stripping Capacity - Stranded Wire | 10 AWG |
| Minimum Wire/Cable Diameter | 22 ga |
| Maximum Stripping Capacity - Solid Wire | 10 AWG |
| Cutting Capacities | 22 to 10 AWG |
| Stripping Capacity- Cable | 0.645 to 2.588 mm |
| Connectors Crimped | Insulated Connectors, Noninsulated Connectors, Terminals |
| Minimum Stripping Capacity - Solid Wire | 22 AWG |
| Maximum Wire/Cable Diameter | 10 ga |
| Stripping Capacity- Stranded Wire | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
| Body Material | Steel |
| Stripping Capacity - Solid Wire | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
| Grip Material | Vinyl |
| Tool Functions | Cut, Screw Shear |
| Package Quantity | 1 |
