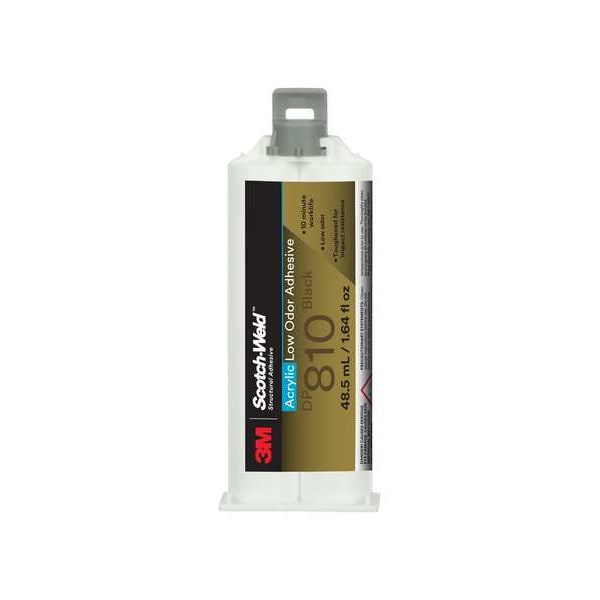

Acrylic Adhesive, DP810 Series, Dual-Cartridge, 1:1 Mix Ratio, 20 min Functional Cure
| Item | Acrylic Adhesive |
|---|---|
| Type | Low Odor |
| Application | For The Structural Bonding |
| For Use On | 3M(TM) Dispensing Equipment |
| Container Type | Dual-Cartridge |
| Functional Cure | 20 min |
| Full Cure | 24 hr |
| Mixing Ratio | 1:1 |
| Shear Strength | 4,200 psi |
| Temp. Range | 0 to 73 deg F |
| Working Time | 10 min |
| Series | DP810 |
| Coverage | 320 sq ft/gal |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Shear Strength (PSI) | 3,600 |
| Temp. Range (F) | 0 to 73 |
| Structural Adhesive Type | Acrylic Adhesive |
| For Use With | 3M(TM) Dispensing Equipment |
| Size | 1.64 fl oz |
| Work Life | 10 min |
| Resin Type | Acrylic |
| Application Method | No Special Application |
| Peel Strength | 20 lb/in |
| Hardener Color | White |
| Full Cure Time | 24 hr |
| Standards | OSHA 29 CFR 1910.1200, TSCA |
| Interior/Exterior | Exterior, Interior |
| Non-Sagging | No |
| Minimum Application Temperature | 0 deg F |
| Resin Color | Black |
| Alternate Product Name | 3M Scotch-Weld Low Odor Acrylic Adhesive DP810 |
| Compatible Mixer Tip | 7100104991 |
| Cure Method | Ambient |
| VOC Content Weight | 3.1 g/L |
| Compatible Applicator | 3M EPX |
| Low Odor | Yes |
| Minimum Viscosity | 17,000 cps |
| Maximum Performance Temperature | 180 deg F |
| Features | High Peel Strength, Minimal Surface Preparation |
| Primary Applications | Metals |
| Total Volume | 48.5 mL |
| Marine Grade | No |
| Maximum Application Temperature | 80 deg F |
| VOC Content Weight Percentage | 0.3% |
| Cured Color | Black |
| Tensile Strength | 3,600 psi |
| Water Resistance | Not Water-Resistant |
| Materials Bonded | Ceramic, Concrete, Glass, Masonry, Metal, Plastic, Rubber, Wood |
| Included Components | Hardener, Resin |
| Maximum Viscosity | 22,000 cps |
| Weight | 460.8 oz |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
