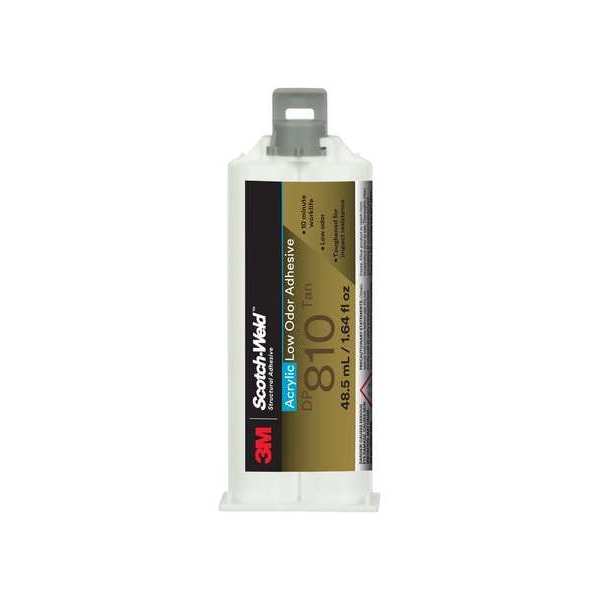

Acrylic Adhesive, DP810 Series, Tan, Dual-Cartridge, 1:01 Mix Ratio, 20 min Functional Cure
| Item | Acrylic Adhesive |
|---|---|
| Type | Low Odor |
| Application | Construction, Electrical, General Industrial |
| Color | Tan |
| For Use On | 3M(TM) Dispensing Equipment |
| Container Type | Dual-Cartridge |
| Functional Cure | 20 min |
| Full Cure | 24 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 4,200 psi |
| Temp. Range | 0 to 72 deg F |
| Working Time | 10 min |
| Series | DP810 |
| Application Method | No Special Application |
| Includes | Resin and Hardener |
| Size | 1.64 fl oz |
| Shear Strength (PSI) | 3,600 |
| Temp. Range (F) | 0 to 72 |
| Epoxy Color | Tan |
| Resin Type | Acrylic |
| Epoxy Container | Dual-Cartridge |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| For Use With | 3M(TM) Dispensing Equipment |
| Coverage | Dependent on Substrate |
| Work Life | 10 min |
| Structural Adhesive Type | Acrylic Adhesive |
| Cure Method | Ambient |
| Primary Applications | Metals |
| Alternate Product Name | 3M Scotch-Weld Low Odor Acrylic Adhesive DP810 |
| Compatible Applicator (Grainger Part Number) | 54XK02 |
| Low Odor | Yes |
| Compatible Applicator | 3M EPX |
| Materials Bonded | Ceramic, Concrete, Glass, Masonry, Metal, Plastic, Rubber, Wood |
| Features | High Peel Strength, Minimal Surface Preparation |
| VOC Content Weight Percentage | 0.3% |
| VOC Content Weight | 3.1 g/L |
| Maximum Viscosity | 22,000 cps |
| Minimum Viscosity | 18,000 cps |
| Hardness at Full Cure | 79 Shore D |
| Maximum Application Temperature | 80 deg F |
| Tensile Strength | 3,600 psi |
| Full Cure Time | 24 hr |
| Maximum Performance Temperature | 180 deg F |
| Included Components | Hardener, Resin |
| Minimum Application Temperature | 0 deg F |
| Resin Color | Green |
| Compatible Mixer Tip | 7100104991 |
| Water Resistance | Not Water-Resistant |
| Marine Grade | No |
| Total Volume | 48.5 mL |
| Interior/Exterior | Exterior, Interior |
| Cured Color | Tan |
| Peel Strength | 30 lb/in |
| Standards | ASTM D1002-72, ASTM D1876-61T |
| Hardener Color | White |
| Non-Sagging | No |
| Weight | 419.2 oz |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
