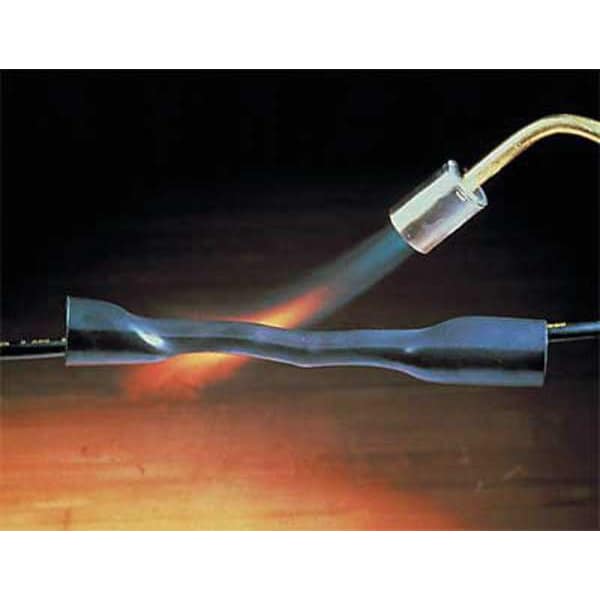

Adhesive Lined Heat Shrink Tube, Medium Wall, 3:1 I.D. Shrink Ratio, 0.4 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Medium Wall |
| Shrink Tubing I.D. Before Shrinking | 0.4 in |
| Shrink Tubing I.D. After Shrinking | 0.15 in |
| Material | Polyolefin |
| Color | Black |
| Length | 4 ft |
| Use with Wire Size | 12 to 6 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 250°F |
| Features | Corrosion Resistant, Environmental Resistant |
| Standards | ABS, SAE-AMS-DTL-23053/15 |
| Max. Voltage | 1,000 V |
| Flame Retardant | Yes |
| Shrink Tubing Wall Thickness After Shrinking | 0.09 in |
| Tubing Wall Type | Medium Wall |
| Adhesive Lined | Yes |
| Package Style | Individual Pieces |
| Dielectric Strength | 1,000 V |
| Wall Thickness After Shrinking | 0.09 in |
| Max. Temp. Rating | 230 deg F |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant |
| Min. Temp. Rating | -67 deg F |
| I.D. After Shrinking | 0.15 in |
| I.D. Before Shrinking | 0.4 in |
| Package Quantity | 20 |
