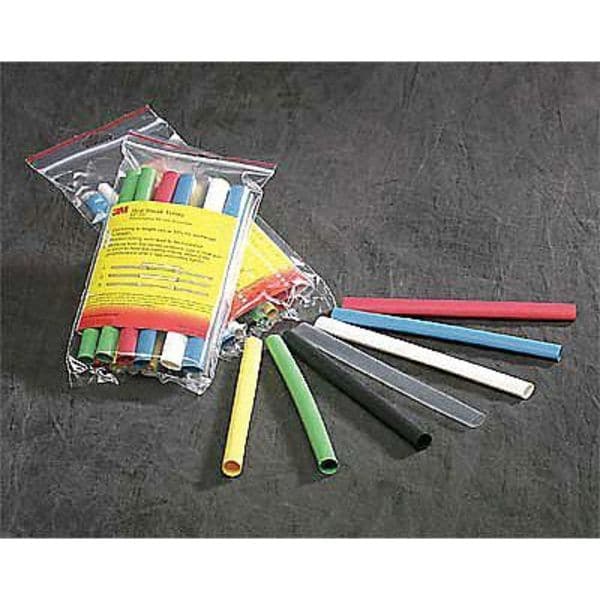

Adhesive Lined Heat Shrink Tube, Thin Wall, 2.5:1 I.D. Shrink Ratio, 1 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 2.5:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1 in |
| Shrink Tubing I.D. After Shrinking | 0.4 in |
| Material | Polyolefin |
| Color | Black |
| Length | 4 ft |
| Use with Wire Size | 4/0 to 500 MCM |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 275°F |
| Standards | CSA Certified, RoHS 2011/65/EU, SAE SAE AS23053/4, Class 1, UL Listed |
| Shrink Tubing Material Type | Semi Rigid |
| Max. Voltage | 600 V |
| Shrink Tubing Wall Thickness After Shrinking | 0.075 in |
| Flame Retardant | No |
| Features | Multiple Wall is Co-Extruded and Cross-Linked To Offer A Meltable Inner Wall, Offers A Skintight Fit and Strain-Relief Sealing Of Electrical Connections, Wire Splices and Components |
| Adhesive Lined | Yes |
| Tubing Wall Type | Thin Wall |
| Shrink Tubing Properties | Acid and Alkali Resistant |
| Package Style | Individual Pieces |
| Max. Temp. Rating | 230 deg F |
| Dielectric Strength | 600 V |
| Wall Thickness After Shrinking | 0.08 in |
| Min. Temp. Rating | -67 deg F |
| I.D. After Shrinking | 0.4 in |
| I.D. Before Shrinking | 1 in |
| Shrink Tube Material Type | Semi Rigid |
| Package Quantity | 24 |
